PRECISE
VEHICLE TRACKING
Record motion data and GPS locations from any vehicle for your 3D assets or Motion Controlled process work.
Cut down time on animating frame by frame and no more guess work programming motion controlled sequences.
Up to
hours of record time with single charge
Up to
frames per second recorded every take
Up to
hours of record time with single charge
Up to
frames per second recorded every take
HiGH PERFORMANCE GPS
Our GPS is High Performance, Low Drift.
We connect to the United States’ Global Positioning System (GPS), Russia’s GLONASS, China’s BeiDong-2 and the European Galileo networks, giving you a powerful all-in-one navigation solution.
INDUSTRIOUS &
SMART
With our run and gun setup and multiple attachments to suit any vehicle, our Rugged boxes can handle the fast paced world of an action film set.
Jam with camera timecode to allow easy syncing with your post production workflow.
Technical Specifications
| TIMECODE | Auto sync to camera timecode |
| BATTERY LIFE | Up to 12 Hours Record Time – Extend with provided power banks |
| MOTION RECORDED | Roll, Pitch, Yaw, Acceleration, Altitude, Latitude, Longitude |
| DRIVE SPACE | 32 GB – Over 220 days of record time |
| BOX DIMENSIONS | 22.8 x 12.3 x 7.3 cm |
| FRAME RATES | 5 – 50 Frames Per Second |
| BOX PROTECTION | IP68 Rated Protection |
| WEIGHT | 1.2 kg / 2.6 lb |
| MOUNTING | Multiple External Attachment Points |
| BOOT TIME | 3.5 Seconds |

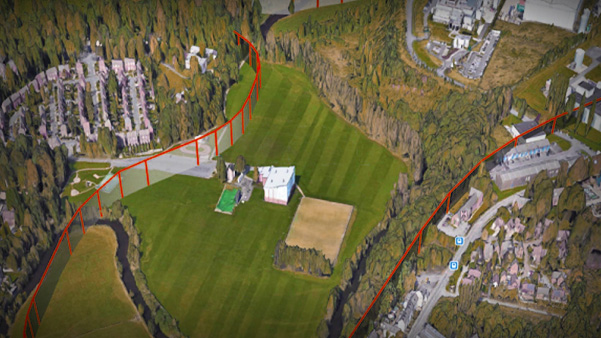

Visualise your data directly in Google Earth or integrate our easy to use .csv files into motion base systems.
